HBB
- Overview
-
Features
• Tool designed for burnishing on lathes, on various profiles
• The roll is supported between axial and radial bearings

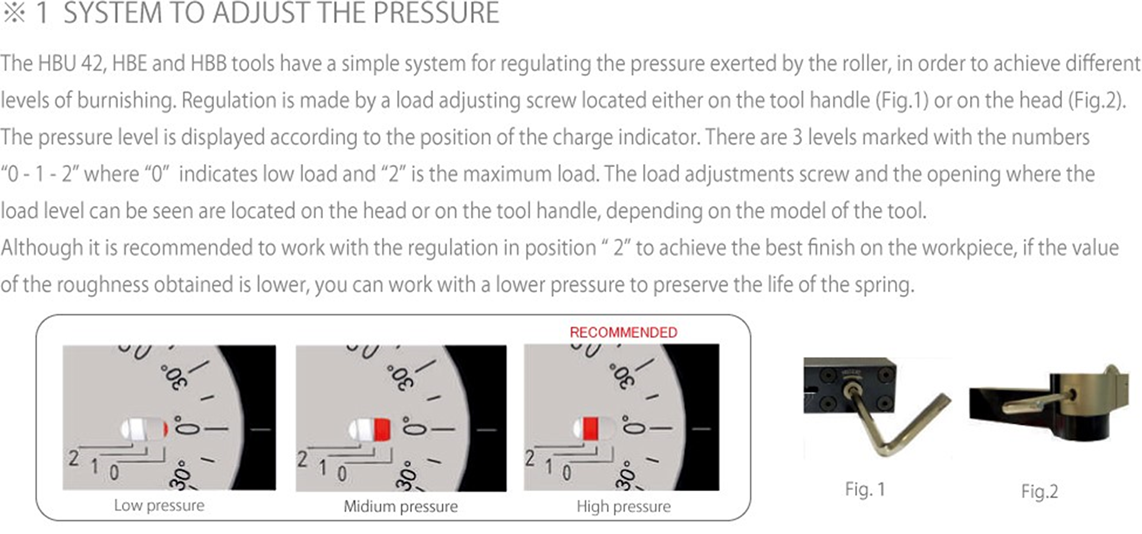

• The pressure of the head can be adjusted in order to obtain different levels of burnishing on the workpiece (※1)
• Possibility of burnishing up to one face
• Usable on pieces of different types of materials with hardness of 45 HRC
• Provided with a B type burnishing roll made of HSS and tempered to 62 HRC, with a polished surface to Ra<0.4
Specs
| Code | Reference | Version | Capacity | Kg |
|---|---|---|---|---|
| 09030200 | HBB 30.25L | L | RB 30*13*20/17 | 0.8 |
| 09030100 | HBB 30.25R | R | RB 30*13*20/17 | 0.8 |
