XTG 575 Tool & Cutter Grinder
- Overview
-

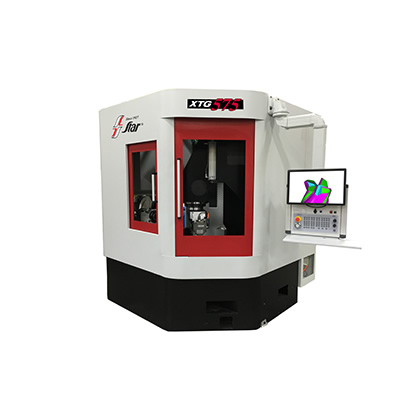

Engineered to be a the most flexible workhorse in your tool room, the XTG 575 CNC Tool and Cutter Grinder is capable of regrinding and manufacturing precise tooling designs. The XTG 575 features all the technology our engineering team has implemented into our designs over our past 5 years. A mineral cast base, linear motors, direct drive rotary axes, and the fastest (4) station CNC controlled wheel changer in history. All while keeping up with the latest developments from NUM CNC and NUMROTO software. All this available from a US manufacturer with a record for impeccable service.
Features
・5-Axis machine featuring NUM Flexium+ Control
・NUMROTO Software
・13 HP HSK direct drive grinding spindle
・Linear glass scales for positioning
・Tool length up to 11 inches
・Industry leading 7 second automated wheel changing
・Integrated wheel and part probes
・Precision work holding solutions
・22” user interface display
Option
・8” diameter wheel dressing roll mounted on headstock
・Hydraulic pop up stead rest
・Quick change universal base with tail center and bushing options
・Integrated pick and place automation
Specs
| Technical Data | Units | PTG 6L |
|---|---|---|
| Base Machine Dimensions (L x W x H) | mm | 2827 x 2218 x 2520 |
| Total Weight: Base Machine | kg | 5443 |
| Maximum Workpiece Diameter | mm | 100 |
| Maximum Workpiece Length | mm | 254 |
| C - Axis Headstock Spindle 360° Rotation | rpm | 1,000 |
| B - Axis Grinding Spindle Swivel +/- 120° | rpm | 12 |
| X - Axis Horizontal Travel | mm | 488 |
| X - Axis Travel Speed | m/min | 50 |
| Y - Axis Vertical Travel | mm | 240 |
| Y - Axis Travel Speed | m/min | 50 |
| Z - Axis Horizontal Travel | mm | 577 |
| Z - Axis Travel Speed | m/min | 50 |
| Grinding Spindle Speed | rpm | 10,000 |
| Continuous Spindle Horsepower | kw | 15 |
| Peak Spindle Horsepower | kw | 25 |
| Maximum Grinding Wheel Diameter | mm | 150 |
| Smallest Programmable Movement - Linear | mm | 0.00254 |
| Linear Axis Glass Scale Feedback Resolution | mm | 0.00001 |
| Smallest Programmable Movement - Rotary | degree | 0.0001 |
| Rotary Axis Feedback Resolution: A-axis | degree | 0.000068 |
| Rotary Axis Feedback Resolution: B-axis | degree | 0.00000006 |
