Machanical Clamping Tools

FEATUES

・High concentricity and repeat accuracies of ≤ 0.005 mm (≤ 0.0002”)
・Excellent wear resistance
・High rigidity due to plane tightening of the workpiece
・Large loading and insertion clearance

PRODUCT VERSIONS

-mechanical clamping arbor

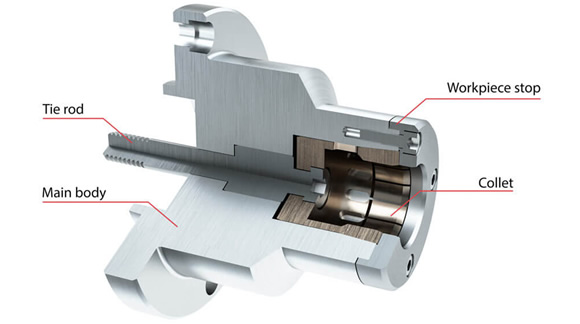

-mechanical clamping chuck
-friction cone

METHODS OF CLAMPING

・Manually by hand
-Axially
・Automatically
-Power-clamping -Push-
-Power-clamping -Pull-
-Permanently via spring package

MACHINE MOUNTS

-Between centers
-Flanged with centering diameter / centering cone
-ISO mounts such as HSK / SK / MK
-Special interfaces (customer-specific)

CLAMPING OPTIONS

-Exchangeable collets / workpiece stops
-Clamping of a gearing -> tip circle / base circle / partial circle clamping

APPLICATION EXAMPLES

TESTING,MEASURING

•

Work Clamp

• HYDRA-Expansion Arbor



  Very high concentricity and repeat accuracy of ≤ 0.003 mm (≤ 0.00012”)

• HYDRA-Expansion Chuck



  Very high concentricity and repeat accuracy of ≤ 0.003 mm (≤ 0.00012”)

• HYDRA Machanical Clamping Tools



  High concentricity and repeat accuracies of ≤ 0.005 mm (≤ 0.0002”)

• Machanical Clamping Tools



  High concentricity and repeat accuracies of ≤ 0.005 mm (≤ 0.0002”)
