VBT Series Vertical Turning Machines
Models

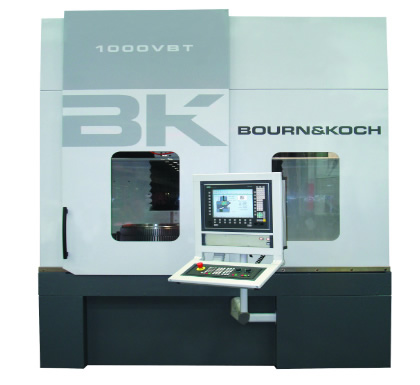

1000 VBT Vertical Turning Machine
The 1000 VBT Vertical Turning Machine is a powerful CNC turning center capable of precisely machining up to 914 mm in diameter.
-
・Max Part Ø: 1000 mm
・Swing: 1100 mm
・Z Axis: 700 mm
- Features
-
・Heavy stress relieved steel weldment base & column, polymer composite filled
・Siemens 840D CNC Control
・4 or 6 station hex turret
・Hydraulic chuck actuator with drawbar

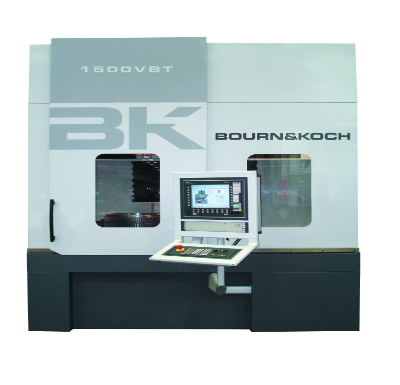

1500 VBT Vertical Turning Machine
Bourn & Koch's 1500VBT is a powerful CNC turning center capable of precisely machining up to 1,500 mm in diameter.
-
・Max Part Ø: 1500 mm
・Swing: 1650 mm
・Z Axis: 1000 mm
- Features
-
・Heavy stress relieved steel weldment base & column, polymer composite filled
・Siemens 840D CNC Control
・4 or 6 station hex turret
・Hydraulic chuck actuator with drawbar

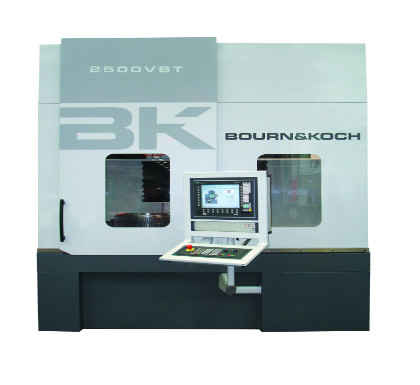

2500 VBT Vertical Turning Machine
Bourn & Koch's 2500VBT is a powerful CNC turning center capable of precisely machining up to 2,125 mm in diameter.
-
・Max Part Ø: 2125 mm
・Wheel Diameter: 2500 mm
・Table Diameter: 1000 mm
- Features
-
・Heavy stress relieved steel weldment base & column, polymer composite filled
・Siemens 840D CNC Control
・4 or 6 station hex turret
・Hydraulic chuck actuator with drawbar
Specs
| Technical Data* | Units | 1000 VBT |
|---|---|---|
| Max. Dia. Swing up to 430 mm above table | mm | 1100 |
| Max.Dia. Swing 430 mm above table | mm | 850 |
| Max. Dia. Turning up to 430 mm above table | mm | 1000 |
| Max. Dia. Turning 430 mm above table | mm | 850 |
| Spindle ASA Flange Nose | A2-20 | |
| Spindle Drive (AC-Digital) | Kw | 60 |
| Maximum number of tools | 12 | |
| Slide travel - Vertical “Z” Axis | mm | 600 |
| Slide travel - Horizontal X“ Axis Total Travel Left of Center Right of Center |
mm mm mm |
650 0 650 |
| Feed rate X & Z (mmpm) | 0-3000 | |
| Height (approximate) | mm | 3440 |
| Length (approximate) | mm | 2590 |
| Width (approximate) | mm | 3100 |
| Weight (Approximate Net) | Kg | 15,455 |
