Double Jet Gundrills

Overview

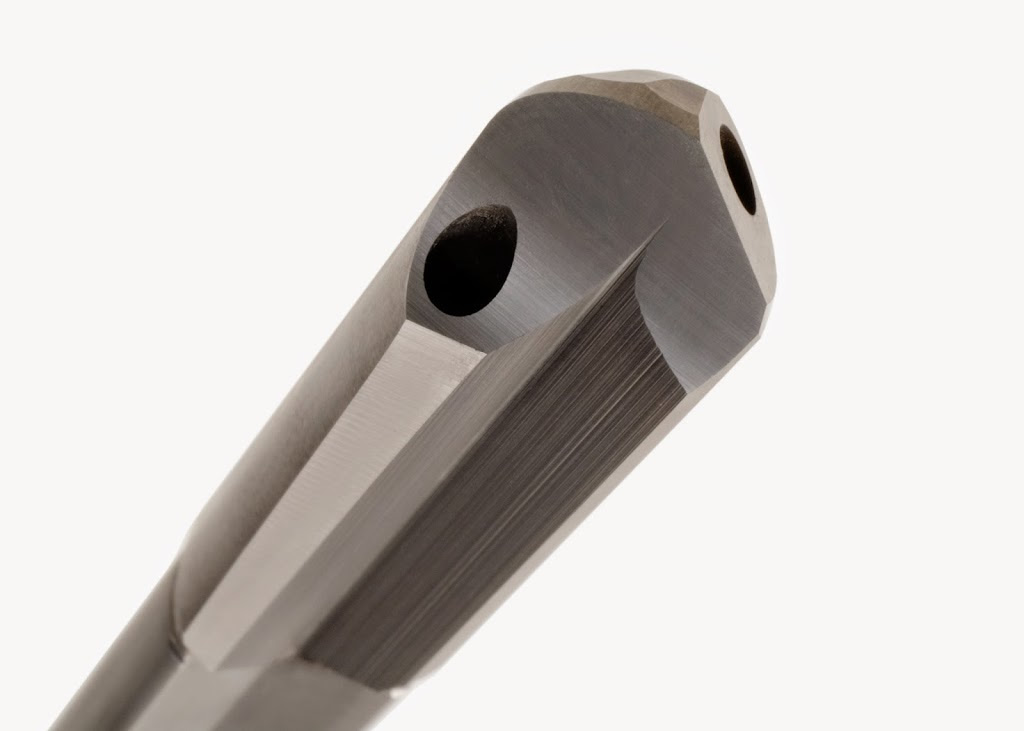

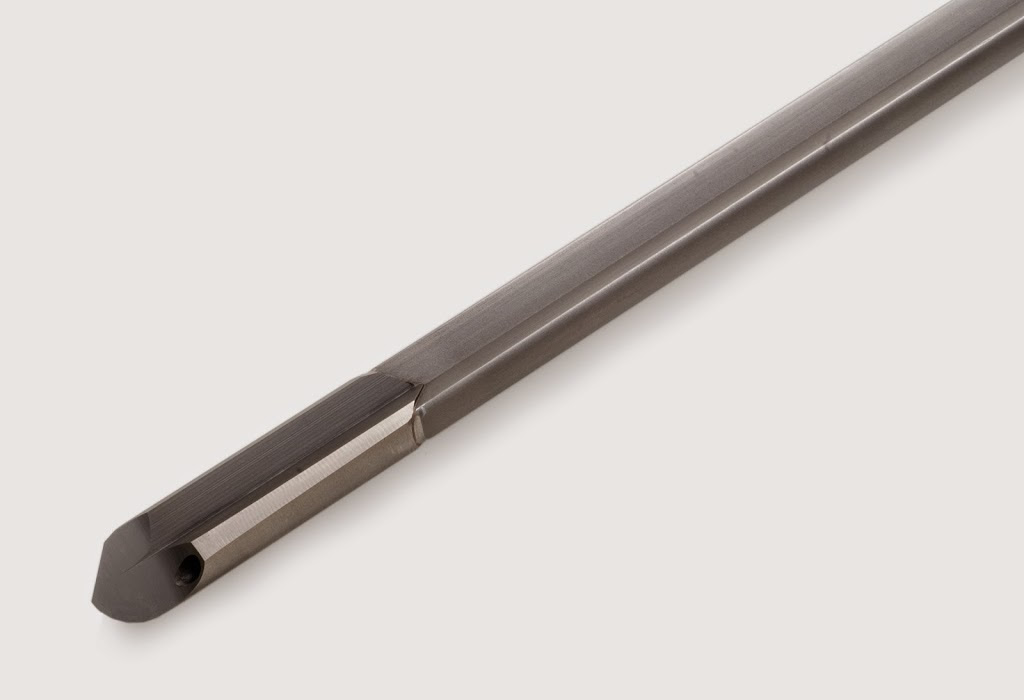

Star SU, with its years of experience in gundrilling, developed a Star-patented Double Jet Gundrill. The most critical interface, in which the carbide is subjected to the most traumas, is during entry and exit of the part. This is caused by the lack of lubricity to the cutting edges. The double jet was designed to combat this type of condition with its unique placement of the coolant holes supplying adequate amounts of coolant to the cutting edge.

Star SU’s double jet product line diameter range is .200" [5.08 mm] through 1.500" [38.1mm]. The overall lengths can be made to any specific length. Lengths over 72" [1828mm] will have an additional weld joint in the body of the tool. An additional advantage to this style gundrill is its ability to break through intersecting holes and/or enter irregular surfaces without premature wear. The unique coolant hole location also assists in kick off burrs that can occur during break through. As with all gundrills straightness, concentricity, size and finishes are obtained.

•
•

Gundrills

• Single Flute Gundrills



  The single flute gundrill, with its ability to machine very straight deep holes and hold excellent finishes, was originally developed for gun barrel manufacturing. Today, this drill is designed for deep hole drilling in virtually any material.

• Solid Carbide Single Flute Gundrills



  Solid carbide gundrills have a two-piece construction design. The tip and body are a single piece of carbide brazed into the driver/shank and the flute is ground down the length of the head and body. This rigid design has made its way into CNC machining centers and lathes, equipped with high pressure coolant delivery systems.

• Two-Flute Two-Hole Gundrills



  Often referred to as the “milled style,” the two-flute two-hole gundrill differs from the double crimp by the rigidity of its body. This rigid body allows for higher feed rates than traditional crimp body style drills.

• Double Jet Gundrills



  Star SU, with its years of experience in gundrilling developed a Star original patented Double Jet Gundrill. The most critical interface, in which the carbide is subjected to the most traumas, is during entry/exit of the part and during interruptions of the boring cycle.

• Double Crimp Gundrills



  The term double crimp is derived from the process of crimping the same tube used for the single flute gundrill, only crimping it twice, 180 degrees apart. Therefore, with the flute channels on this type of tool being somewhat shallower then the single flute, they limit the type of materials to be drilled by the chip size generated.

• Bi-Tip Gundrills



  Similar to the Two-Flute Two-Hole “milled style” product line engineered with a solid steel body, the Bi-Tip has an auger-like helix ground in the body.
