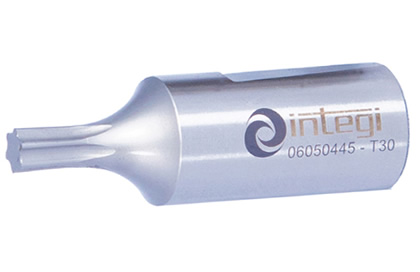

ヘクサロビュラブローチ

機種

8×28mm

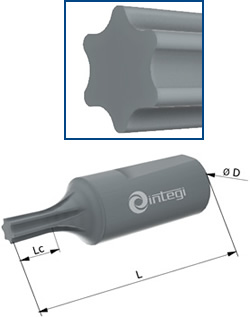

Code Reference Model D L Lc For broaching head
6050241 P-0828-T6 TORX 6 8 28 3 POLIPROFILE 1&2
6050242 P-0828-T8 TORX 8 8 28 3.8 POLIPROFILE 1&2
6050243 P-0828-T10 TORX 10 8 28 4.6 POLIPROFILE 1&2
6050245 P-0828-T20 TORX 20 8 28 6.2 POLIPROFILE 1&2
6050244 P-0828-T15 TORX 15 8 28 5.4 POLIPROFILE 1&2

10×45mm

Code Reference Model D L Lc For broaching head
6050341 P-1045-T6 TORX 6 10 45 3 POLIPROFILE 3
6050342 P-1045-T8 TORX 8 10 45 3.8 POLIPROFILE 3
6050343 P-1045-T10 TORX 10 10 45 4.6 POLIPROFILE 3
6050345 P-1045-T20 TORX 20 10 45 6.2 POLIPROFILE 3
6050344 P-1045-T15 TORX 15 10 45 5.4 POLIPROFILE 3
6050346 P-1045-T25 TORX 25 10 45 6.5 POLIPROFILE 3
6050347 P-1045-T30 TORX 30 10 45 7 POLIPROFILE 3
6050348 P-1045-T40 TORX 40 10 45 8 POLIPROFILE 3
6050349 P-1045-T45 TORX 45 10 45 9 POLIPROFILE 3

16×50mm

Code Reference Model D L Lc For broaching head
6050341 P-1045-T6 TORX 6 10 45 3 POLIPROFILE 3
6050342 P-1045-T8 TORX 8 10 45 3.8 POLIPROFILE 3
6050343 P-1045-T10 TORX 10 10 45 4.6 POLIPROFILE 3
6050345 P-1045-T20 TORX 20 10 45 6.2 POLIPROFILE 3
6050344 P-1045-T15 TORX 15 10 45 5.4 POLIPROFILE 3
6050346 P-1045-T25 TORX 25 10 45 6.5 POLIPROFILE 3
6050347 P-1045-T30 TORX 30 10 45 7 POLIPROFILE 3
6050348 P-1045-T40 TORX 40 10 45 8 POLIPROFILE 3
6050349 P-1045-T45 TORX 45 10 45 9 POLIPROFILE 3
資料請求・お問い合わせ

その他 ブローチ
