HBE
- Overview
-
Features
• Tool designed for burnishing on lathes, on various profiles
• The roll is supported between axial bearings

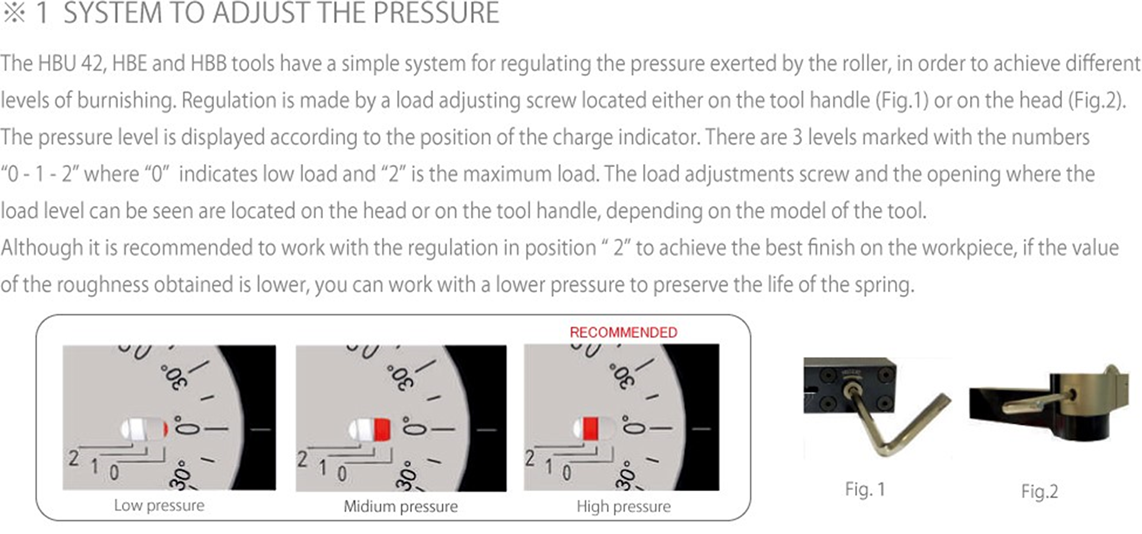

• The pressure of the head can be adjusted in order to obtain different levels of burnishing on the workpiece (Fig.1)
• Carbide pin
• Usable on pieces of different types of materials with hardness of 45 HRC
• Provided with a E type burnishing roll made of HSS and tempered to 62 HRC, with a polished surface to Ra<0.4
Specs
| Code | Reference | Version | Capacity | Kg |
|---|---|---|---|---|
| 09020100 | HBE 25.25 | R+L | RB 25*6*6 | 0.8 |
BURNISHING TOOLS
-
HBB
Tool designed for burnishing on lathes, on various profiles
-
HBC 20-B
Tool designed for burnishing on sliding head lathes, on various profiles
-
HBC 20-E
Tool designed for burnishing on sliding head lathes, on various profiles
-
HBE
Tool designed for burnishing on lathes, on various profiles
-
HBM 20-B
Tool designed for burnishing on sliding head lathes, on various profiles
-
HBM 20-E
Tool designed for burnishing on sliding head lathes, on various profiles
-
HBU 20
Tool designed for burnishing on lathes, on various profiles
-
HBU 42
Tool designed for burnishing on lathes, on various profiles
