HBU 42
- Overview
-
Features
• Tool designed for burnishing on lathes, on various profiles

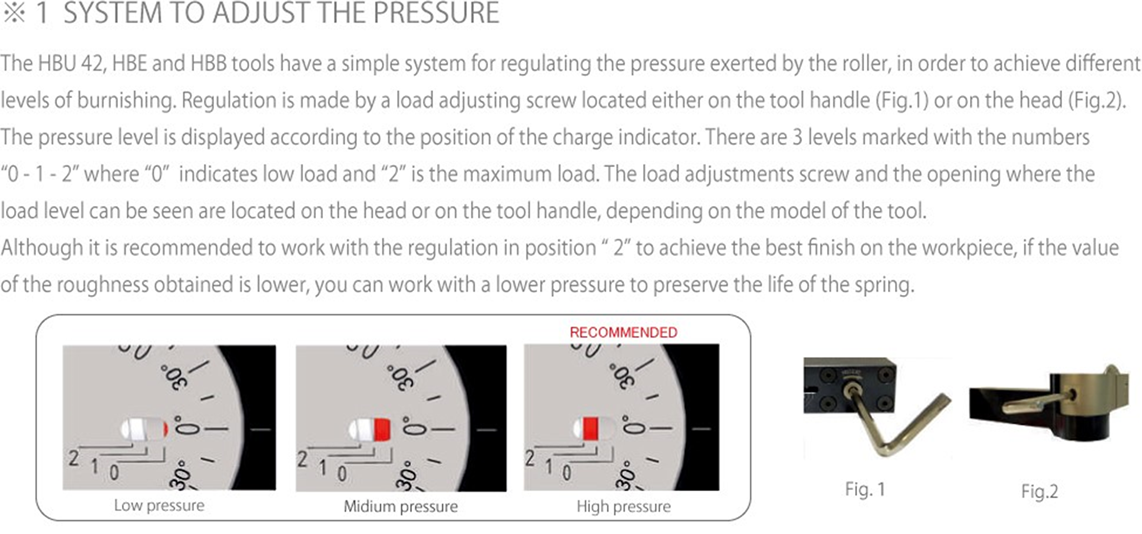

• Rotating head with graduated scale (Fig. 1&2)
• The roll is supported between axial bearings
• Usable on pieces of different types of materials with hardness of 45 HRC
• Carbide pin
• Provided with a U type burnishing roll made of HSS and tempered to 62 HRC, with a polished surface to Ra<0.4
Specs
| Code | Reference | Version | Capacity | C | D | Kg |
|---|---|---|---|---|---|---|
| 09010400 | HBU 42.20 | R+L | RB 42*6*10 | 20 | 25 | 1.2 |
| 09010500 | HBU 42.25 | R+L | RB 42*6*10 | 25 | 25 | 1.2 |
